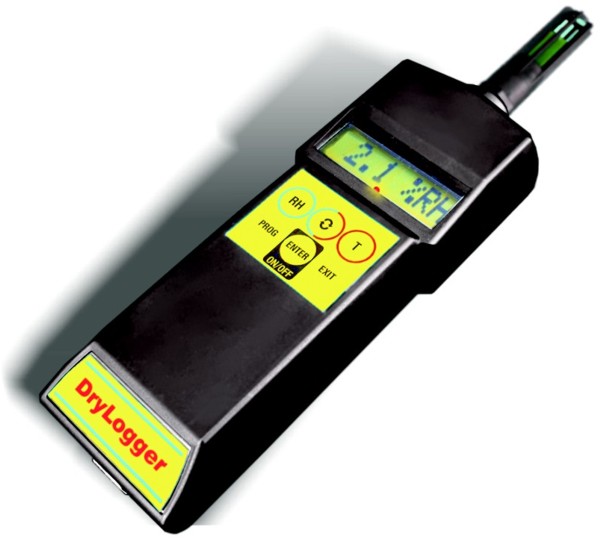

DRYLOGGER

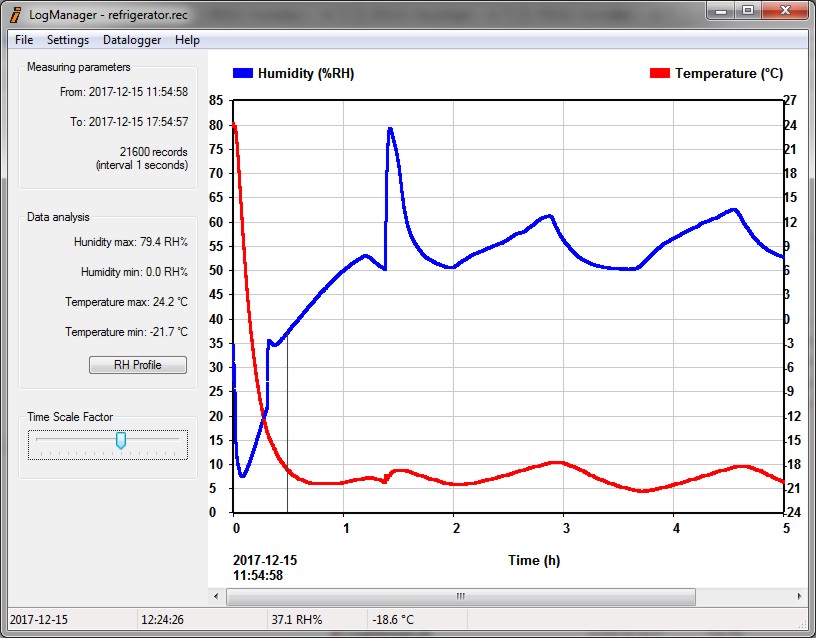

Precision Temperature/Humidity meter. It is also a datalogger used to collect environmental data of humidity and temperature and to transfer them to a Windows PC. The LogManager software, working on Windows PC, used for downloading, displaying, analyzing and reporting your collected humidity and temperature data is included.
It is possible to set an alarm that become active when, after a certain period of time, humidity or temperature are above a predetermined maximum threshold.
When the alarm is activated the red LED under the display flashes.
Humidity: 1 to 95%RH
Resolution: 0.1%RH
Accuracy: ±2%RH
Temperature: -20°C to +60°C
Resolution: 0.1°C
Accuracy: ±0..5°C
Humidity Alarm: from 1 to 95%
Temperature Alarm: from 0 to 60°C
Alarm activation delay: from 1 to 99 minutes
Memory: 21600 samples
Sampling rates: can be set at 1, 5, 10, 15, 30 seconds and 1, 5, 10, 15, 30 minutes
LCD Display: 48x11mm
Interface: RS232 e USB
Size: 184x67x44mm
An individual serial numbered ISO9000 traceable certified is supplied

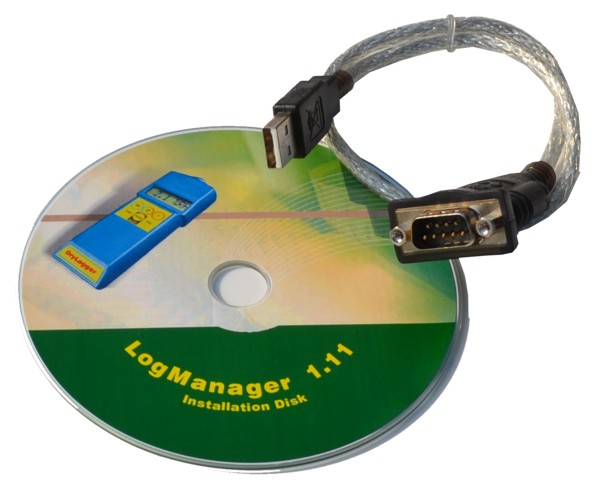

9265.302 DryLogger, Humidity/Temperature hand LCD datalogger. USB cable and LogManager software to collect data to Windows PC are included.
CK-005 ISO9000 Traceable certificate

Temperature/Humidity datalogger

Temperature/Humidity datalogger

Temperature/Humidity datalogger

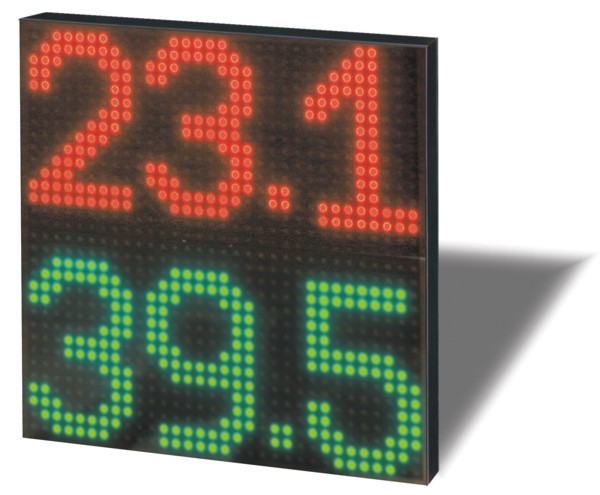

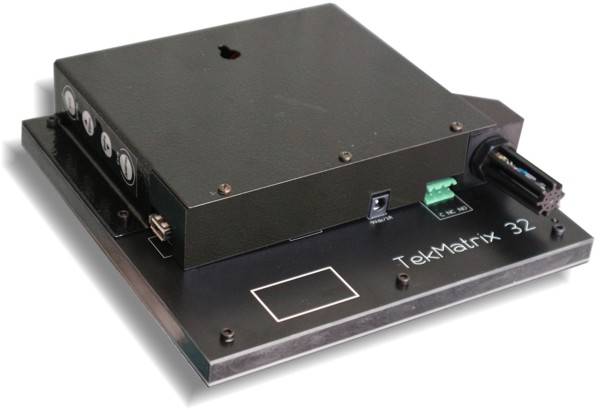

TEKMATRIX 32 humidity/temperature monitoring & alarming & datalogging
It monitors simultaneously humidity, temperature on his large display, and alerts the engineers to check and repair the facilities immediately when the settable HIGH or LOW limits of RH/T are exceeded.
When the alarm is active, its output relay can activate an emergency circuitry.

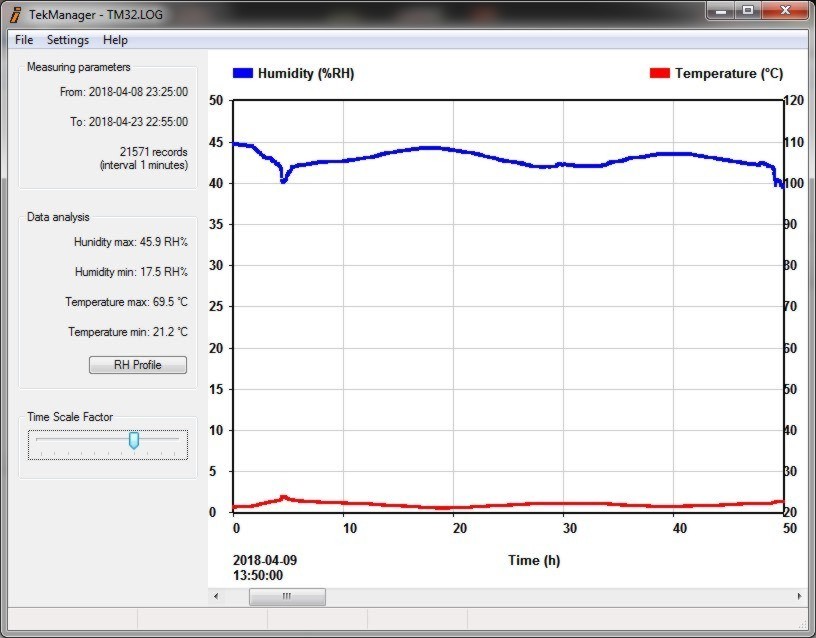

The internal datalogger samples the environmental data of humidity and temperature that can subsequently be transferred to a Windows PC via USB or Ethernet interface (the “TekManager” software is included).
The instrument sensor can be hooked to the display or positioned externally.
Can be set to fixed display of RH/T or alternate it with date and time.
Humidity: 1 to 95%RH
Resolution: 0.1%RH
Accuracy: ±2%RH
Temperature: -20°C to +60°C
Resolution: 0.1°C
Accuracy: ±0,5°C
Led display: 190x190mm
Memory: 64Kbyte (21600 couples of RH & T)
Sampling rates: can be set at 1, 5, 10, 15, 30 minutes
Interface: USB or Ethernet
Dimensions: 190x190x49mm
An individual serial numbered ISO9000 traceable certified is supplied

8105.103U Humidity/Temperature Monitoring&Alarming&Datalogging, USB interface
8105.103E Humidity/Temperature Monitoring&Alarming&Datalogging, Ethernet interface
CK-013 ISO9000 Traceable certificate
